Workshop Lighting

Workshop Lighting Solutions at Affordable Prices

Your workshop lighting is the most important place where you spend more time to work and to develop something new and innovative for better future. The place should be well-furnished, fully equipped and illuminated through day lighting and electricity. We are well aware of the demand of such lighting systems and keeping the same concern in mind, we have come up with energy efficient workshop lighting that are LED lighting systems and made keeping in mind thearea to be illuminated.

Our lighting systems and workshop lighting solutions are ideal option for those who need natural like lighting within their budget. We have a team of professionals from this domain who have been into the industry for years; while they keep them updated with latest technologies and solutions to provide you the best results. We adopt the advanced optical requirement.

We always bring you CE, UL and GS certified products exported to the USA, UK, Korea, France and different other countries.

    Case show:

MSD LED linear trunking system is designed for industrial lighting like workshop production line .This workshop lighting solution not only gives super brightness for high precision work , but also helps save a lot energy. MSD LED linear lighting?solution is based on Dialux simulation and with the experience of real case.

    Case Example: workshop simulation

In this warehouse case, surface is 48.6*24 ㎡. Room height is 10m, mounting height is 8.5m. Mainly lighting plan is on the merchandise shelf ,arr illumination is over 700 lux. In this project , we use the wide angle lens for our linear lamp.

1. DIALUX 3D rendring simulation:

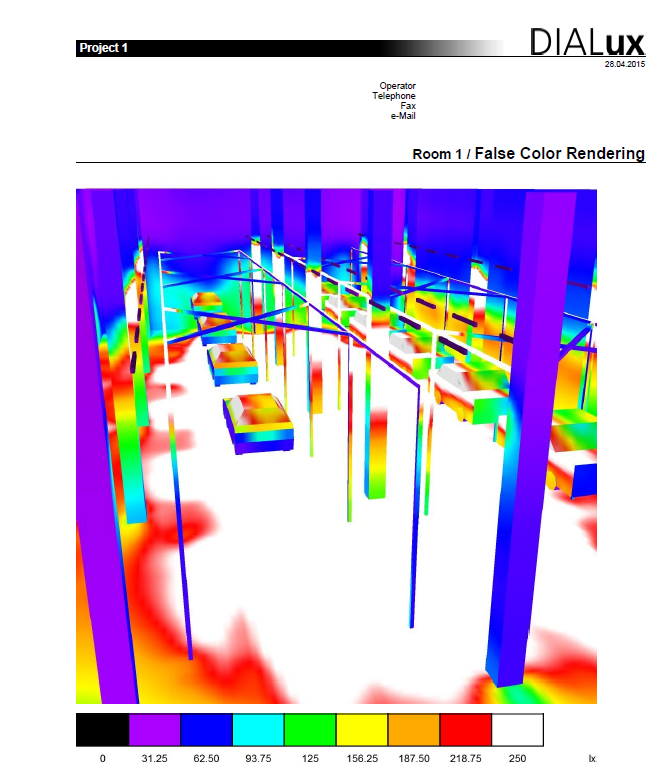

2. Color(lux) rendring simulation:

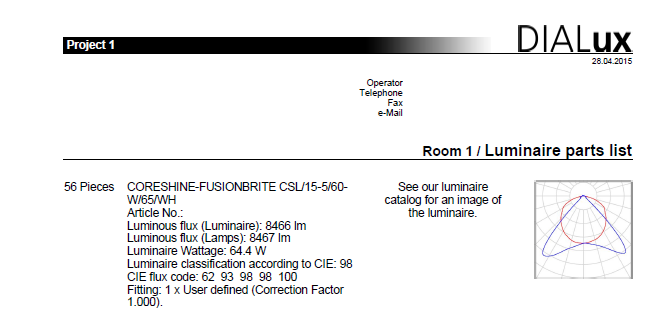

3. Luminaire parts list:
