HB-100M-BC/4ft,100w
07/04/2018
TPSL1241-WY/4ft 40W
07/05/2018

TPSL0621-WY/2ft 20W

£9.00

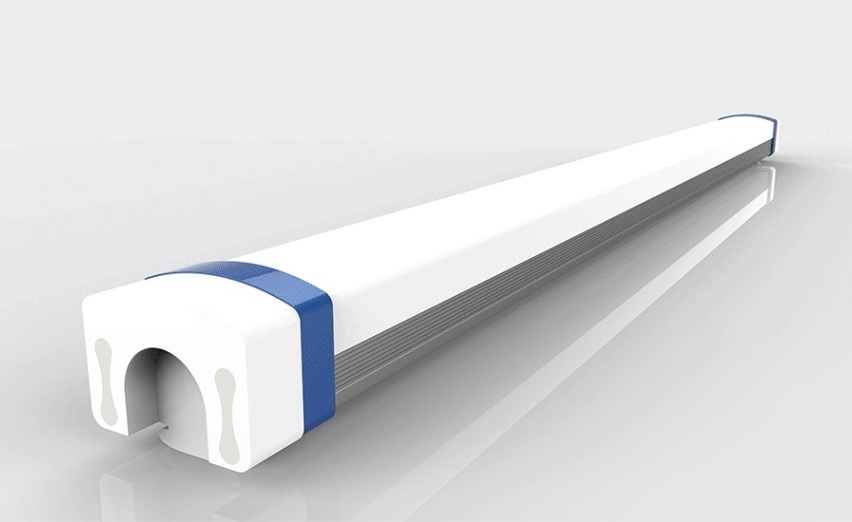

    T40-PLUS is designed for replace traditional tube fixture, with new function of : IP66 waterproof , V0 fire-proof, IK10 shake proof . you can use the car push down and the light PC cover will not damage . the LED light reduces costly repairs, disposal fees, and the need for replacements. A vapor-proof, weatherproof aluminum housing and frosted polycarbonate lens are dust tight as well as water and impact resistant for use in harsh environments.

Characteristic:

●6063 T5 Air Aluminum + PC, good heat dissipation.

●Large light area





Application :Lighting for small warehouse/subway/underground deport solution
–The luminaire need fellow characteristics of the eave:
(1)Motion sensor : when people come in the light on , leave then the light off . sometime even request turn into 30% brightness after leave .
(2)Emergency :  according to the fire law and regulations ,need 10%-20%(different country have different request) light have emergency function.
(3)Waterproof : the wet environment and sunlight make the light should be IP65 waterproof and anti UV .
(4)linear lighting: if use round down light ,the interval large and need install many light per meter ,so choose 4ft ,5ft ,6ft ,8ft will be economy and beautiful . install less lamp each square meter .
Beam Angle 120 degree Color 3000K/4000K/5000K/6000K optional
Wattage 18W CRI >82Ra
Dimmable No LEDs Type SMD2835
LED Brand Samsung/Toyota IP Rating IP65
Material 6063 T5 air aluminum + PC Cover Output Luminous 2400lm
Operating Temperature -20~+50 °C Input Voltage 100-277VAC
Standards And Certifications CE, RoHS Compliant, SAA Total Power Consumption 20W
Warm White 2200K,2700K,3000K,3200K Nature White 4000-4200K
Day White 5000K Cool White 6000K



PDF Logo 2

Installation Manual

PDF Logo 2

Download Spec Sheet

PDF Logo 2

UL/CUL Certification

PDF Logo 2

DLC Certification

PDF Logo 2

CE Certification

PDF Logo 2

IK10 Certification

PDF Logo 2

IP65 Waterproof Certification
