SMD3528 240leds/meter
07/17/2018

SMD3528 120leds/meter

£9.00

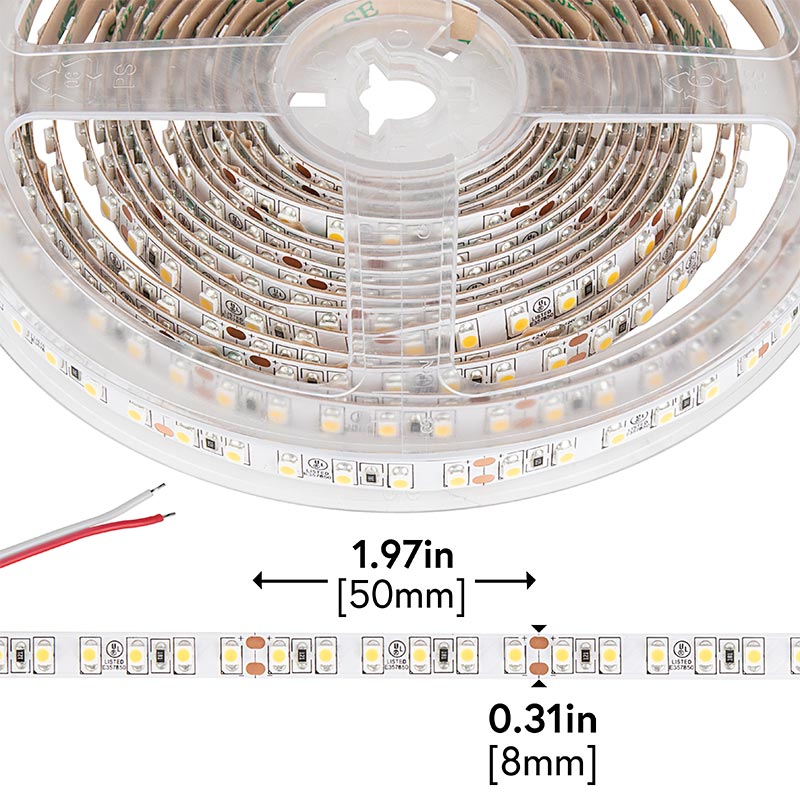

LED Strip lights-12v/24v LED Tape Light-3528 120LEDs/meter-650LM/meter-CRI>90

The possibility of cut into different length and the color: Red,Blue,Green,Yellow,Warm White,Nature White,Cool White optional,make this type of LED Strip very dynamic for any type of application.Exclusive installation on dissipating extruded aluminum bar.

Application:

●TV Back lighting/Bar and restaurant accent lighting

●Cover Lighting



Category: .

This flexible LED light strip is great for cabinet lighting, under-cabinet lighting, toe-kick lighting, cove lighting, task lighting, bookshelf lighting, showcase lighting, cupboard lighting, bias lighting, or for other indoor applications where space is limited. Using up to 600 LEDs, the flexible light strip emits up to 650 lumens of powerful illumination per meter. can be easily cut into 3-LED segments and installed with its peel-and-stick adhesive backing. Designed to last 30,000 hours, the single-color light strip operates within a 12V/24V DC range and is available in cool white, natural white, warm white, ultra warm white, pink, UV (blacklight), blue, green, amber, and red.



Beam Angle 120 degree Color Single Color /Special Color optional
Wattage 9.6W/meter CRI >90Ra
Dimmable Yes LEDs Type SMD3528
LED Brand Epistar IP Rating IP20/IP65/IP67/IP68 optional
Material FPCB Output Luminous 650LM/meter
Operating Temperature -20~+50 °C Input Voltage DC12V/24V
Standards And Certifications CE, RoHS Compliant, UL Listed Total Power Consumption 4.8W/meter
Warm White 2200K,2700K,3000K,3200K Nature White 4000-4200K
Day White 5000K Cool White 6000K
Red Color 620-625nm      180LM(±10% ) Yellow Color 585-590nm      140LM(±10% )
Blue Color 465-470nm      110LM(±10% ) Green Color 520-525nm      540LM(±10% )
Package Weight: 4lb 6oz (1.98kg)
Package Dimensions: 52″ (132cm) x 4″ (10cm) x 4″ (10cm)

PDF Logo 2

Installation Manual

PDF Logo 2

Download Spec Sheet

PDF Logo 2

ETL Certification
