PK103A /3W with lens
06/26/2018
PK103C /3W
06/26/2018

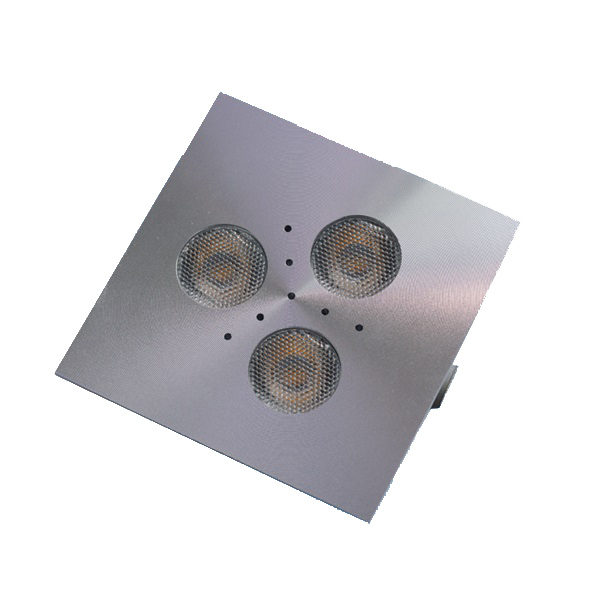

PK103B /3W with lens

£9.00


Series of mini small cut-out LED Puck light. On request it is also possible to change the fixture body color Ideal for any type of lighting such as office , cabinet ,house ,shops ,public offices and clinics .

Characteristic:

●DC12/24V input, choose normal constant voltage driver is OK.

●Double install way: surface install or recessed install.

●Light beam angle: 30/45/60degree optonal.

●Famous brand led chips: Cree /Edition.



分类: .
Beam Angle 30/45/60 degree optional Light Color 3000K/4000K/5000K/6000K optional
Wattage 3X1W CRI >82Ra
Dimmable Yes LEDs Type SMD2835
LED Brand Cree/Edision IP Rating IP44
Material 6063 T5 air aluminum + PC Cover Output Luminous 225lm
Operating Temperature -20~+50 °C Input Voltage DC12V/DC24V
Standards And Certifications CE, RoHS Compliant Total Power Consumption 3W
Warm White 2200K,2700K,3000K,3200K Nature White 4000-4200K
Day White 5000K Cool White 6000K
Surface color White/grey/black optional Size: L90*W90*H10mm
Package Weight: 120kg
Package Dimensions: 100PCS/Carton

PDF Logo 2

Installation Manual

PDF Logo 2

Download Spec Sheet
